Neware 5V12A Micro Battery Cycle Test Equipment Cylinder Battery Analyzer
1 . For a 3000mAh cell battery , people want to charge it at 6000mA - 2C or even 9000mA - 3C current . And in some labs , researchers are trying 10C or even higher C - Rate charge or discharge . In this situation , 5V12A is the very rising star for both battery manufactures and researchers .
2 . To meet the various requirements adopted in advanced battery research , our equipments can automatically switch the current range in accordance with user settings to maintain consistent accuracy , and can be fitted with additional hardware to provide a number of optional features and capabilities .
3 . 5V12A Battery Testing System is mainly used for testing polymer batteries , cylindrical batteries and super capacitors . The test of polymer batteries and super capacitors need Neware special accessories .
4 . Neware 5V12A is the most popular battery tester ever , more than 50 percent customers would choose this model as their main products .
5 . For customers who came across Neware the first time , 5V12A is also strongly suggested as their tryout demo machine . Neware 5126A is powerful , reliable , it works on the very popular coin cell , cylindrical cell and prismatic cells , etc . It can be used for battery formation and grading , cycle - life test , performance and so on .
6 . Nowadays battery capacity density becomes higher and higher , thats the trend of this whole energy industry , people need smaller dimension battery to contain more energy . New technology and upgraded producing process make this idea come into reality . Of course , high C - Rate charge - Quick charge is another reason for higher current testers become more popular than before .

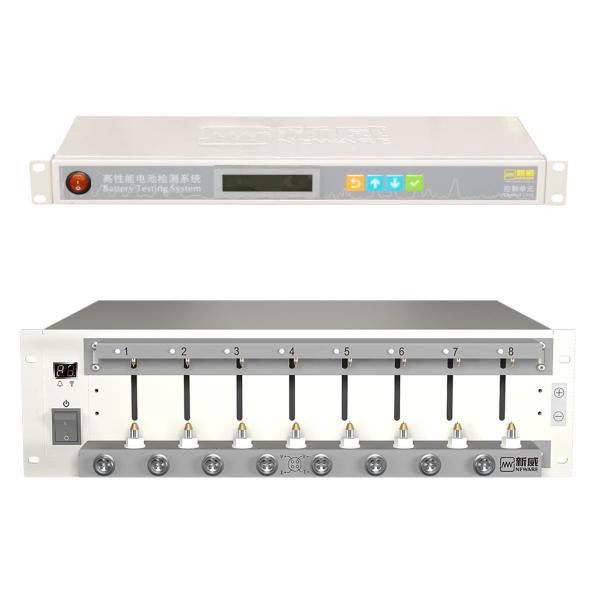

7 . Cylindrical batteries need to be clamped between the upper and down clamps of the equipment . By moving the position of the upper accessory accurately according to the scales on both sides , you can test different capacities of Cylinders Batteries .
| Voltage | Per Channel Voltage Range | 1.5V - 5V |
| Discharge Min Voltage | 1.5V |
| Accuracy | 0.05 percent of FS |
| Stability | 0.05 percent of FS |
| Current | Per Channel Current Range | Range1 , 5mA - 1A Range2 , 1A - 6A Range3 , 6A - 12A |
| Accuracy | 0.05 percent of FS |
| Stability | 0.05 percent of FS |
| Time | Current Response Time | 1ms |
| Data Recording | Record Condition | Min Time - 100mS |
| Min Voltage - 10mV |
| | Min Current - Range 1 , 2mA Range 2 , 12mA Range 3 , 24mA |
| Record Frequency | 10Hz |
| Charge | Charge Mode | CCCharge , CVCharge , CCCVCharge , CPCharge |
| End Conditon | Voltage , Current , Relative Time , Capacity , -deltaV |
| Discharge | Discharge Mode | CCD , CPD , CRD |
| End Condition | Voltage , Current , Relative Time , Capacity |
| Pulse | charge | CCC , CPC |
| Discharge | CCD , CPD |
| Min Pulse Width | 500ms |
| Automated Switch | Automated swith from charge to discharge for each pulse |
| End Condition | Voltage, Test Time |
Product Tags:
|
|

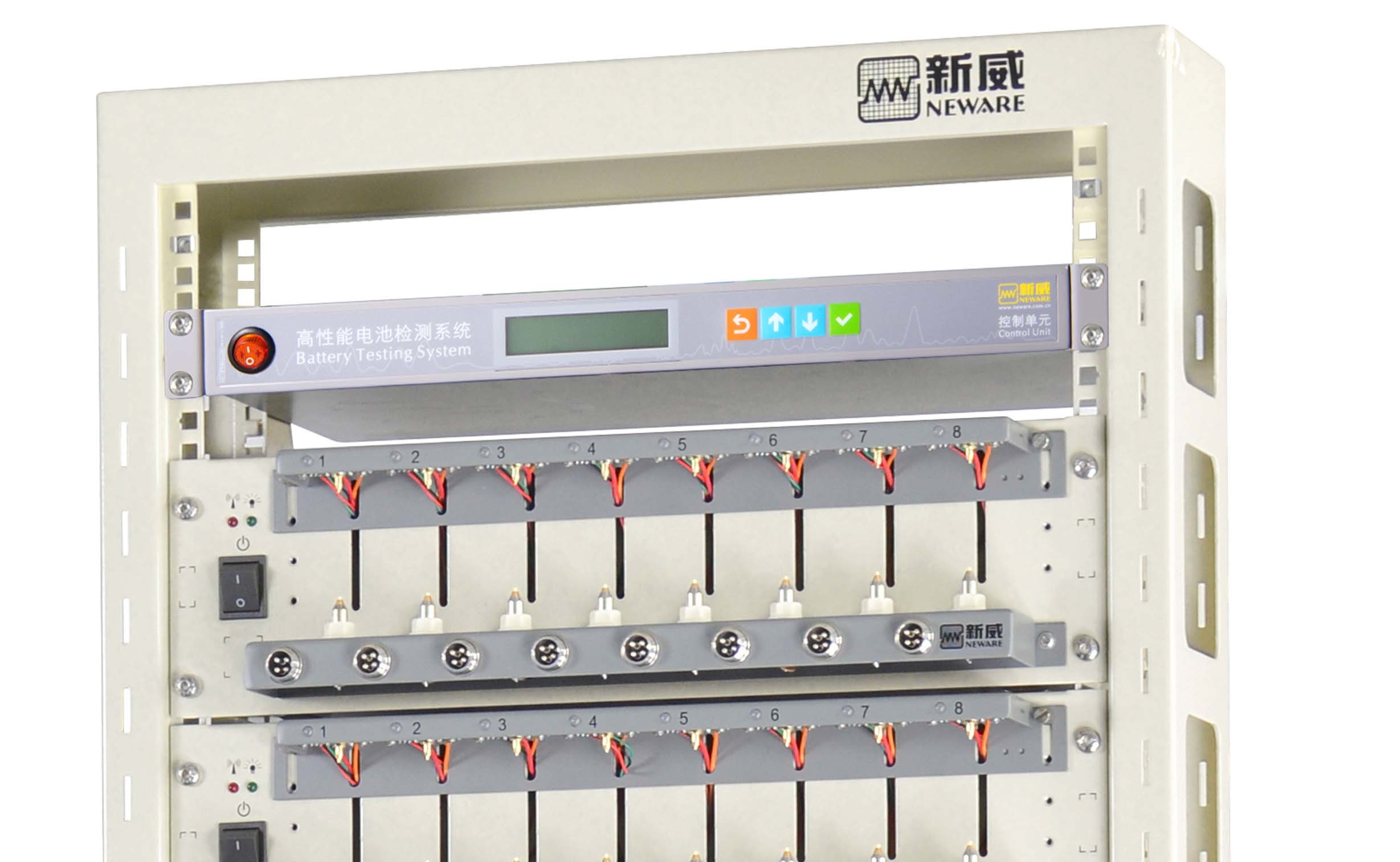

5V12A Cylinder Battery Cycle Tester Images
|
