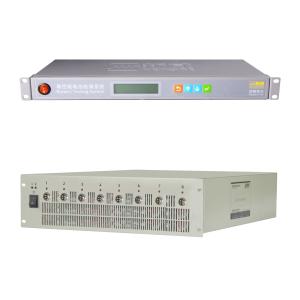

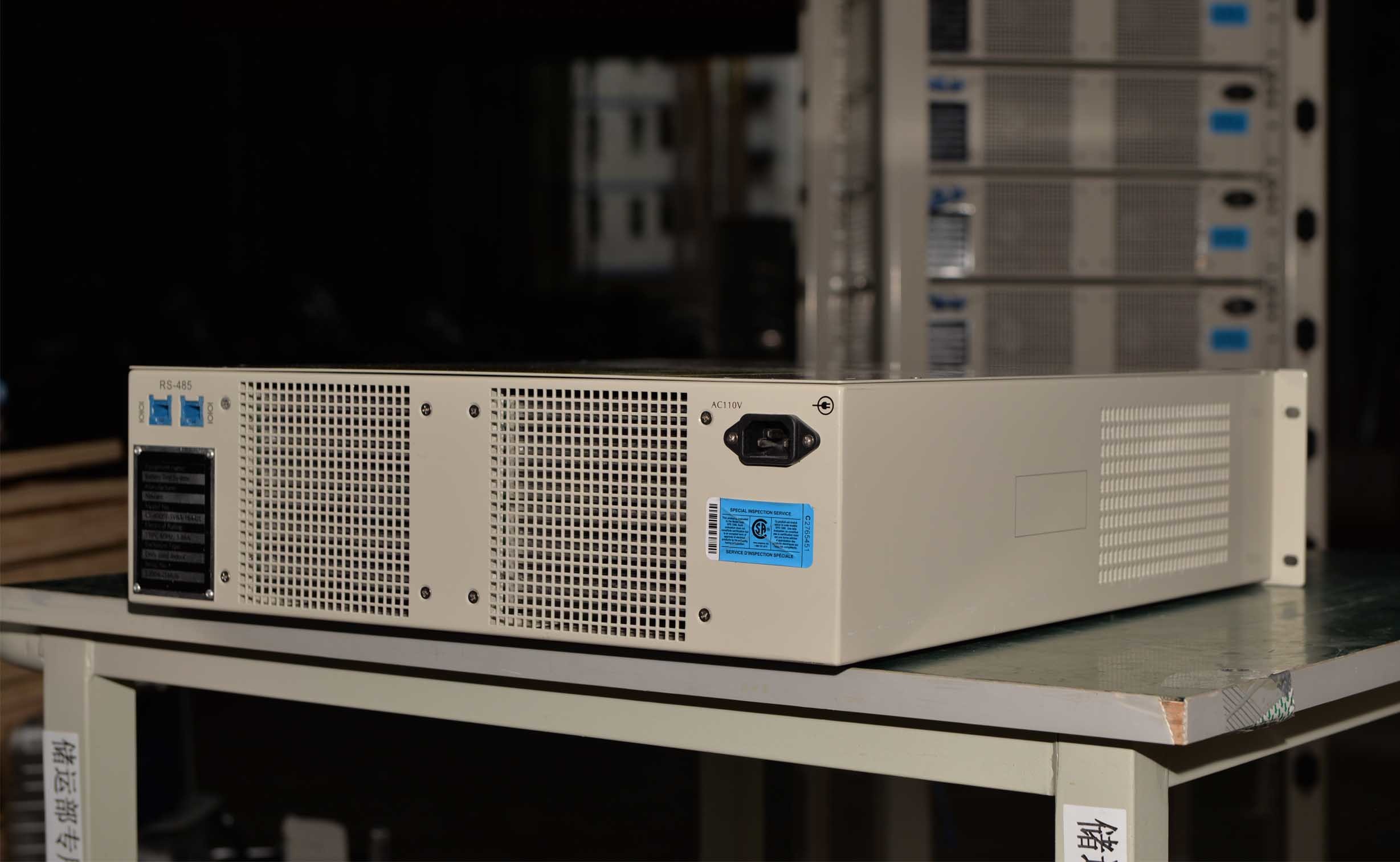

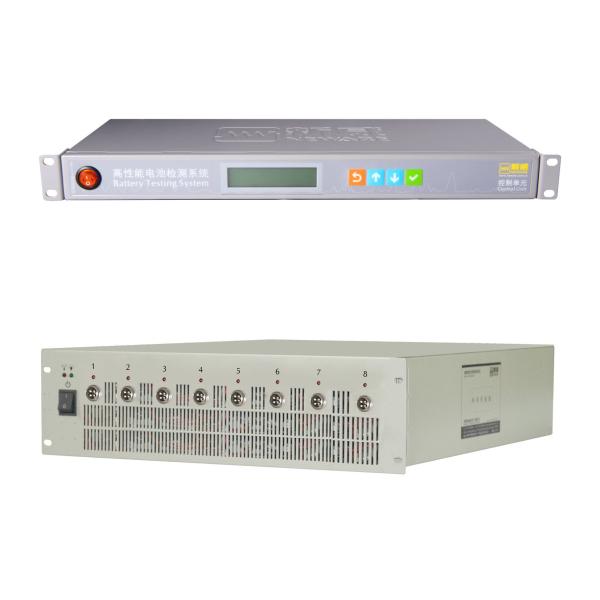

Neware 8 Channel Battery Charger Capacity Cycle Test Equipment
Software Feature
1 , Windows - based software interface for easy operation .
2 , The user can define the curve by different types such as voltage - time curve , current - time curve , capacity - voltage curve .
3 , Uses standard SQL data-base management .
4 , Real - time monitoring windows and integrated graph / data windows can set various working modes for measuring capacity and cycle life of all types of rechargeable batteries , such as , constant current discharge , constant current charge , constant voltage charge , rest , as well as voltage , current , time , capability , negative voltage slope , and other limit conditions .
HPPC , Capacity , Cycle Life , Formation and Grading , Over - charge , Over - discharge
Market - Proven Testing System
Less than 20ms Response Time to Meet Rapidly Changing Power Requirements .
0.1 percent Full - scale Accuracy for Current and Voltage .
10Hz Data Acquisition Frequency , 100Hz Optional .
500ms Minimum Pulse Width More Than 1 Million Records Can Be Processed .
| Data Recording | Record Condition | Time delta T , 100mS |
| Pulse | Charge | CCC |
| | Discharge | CCD |
| | Min Pulse Width | 500ms |
| | Automated Switch | Automated swith from charge to discharge for each pulse |
| | End Condition | Voltage , Test Time |
| Cycle | Loop Measure Range | 65535 times |
| | Max Steps Per Loop | 254 |
| | Nested Loop | Nested loop Function , Max Support 3 Layers |
| Protection | Software Protection | Power - down Data Protection |
| | | Off - line Testing Function |
| | | Setting Protection Condition , Setting Parameter - Low Voltage limit / Upper Voltage limit / Low Current limit / Upper Current limit / Delay Time |
| | Hardware Protection | Additional Anti - reverse Protection Model |
