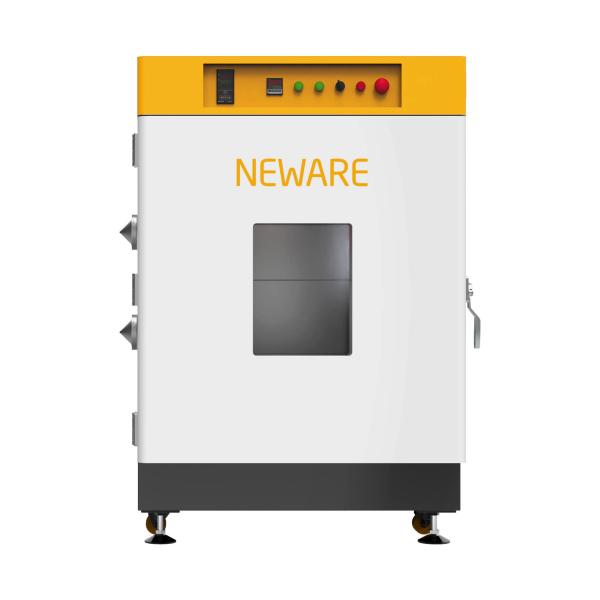

25L Laboratory Test Chamber

  • 1
  • 2
  • 3

Brand Name : Neware

Model Number : MHW-25-S

Certification : CE

Place of Origin : China

MOQ : 1 Unit

Price : USD negotiation per Unit

Payment Terms : T/T

Supply Ability : 30 Units Per Month

Delivery Time : 30 working days

Packaging Details : Wooden Box

Inner box : W280mm - D250mm - H360mm

Outer box : W360mm - D450mm - H500mm

Range : 15 Celsius degree - 60 Celsius degree

Heating time : less than 30 min

Cooling time : less than 60 minute

Weight : 40KG

Contact Now

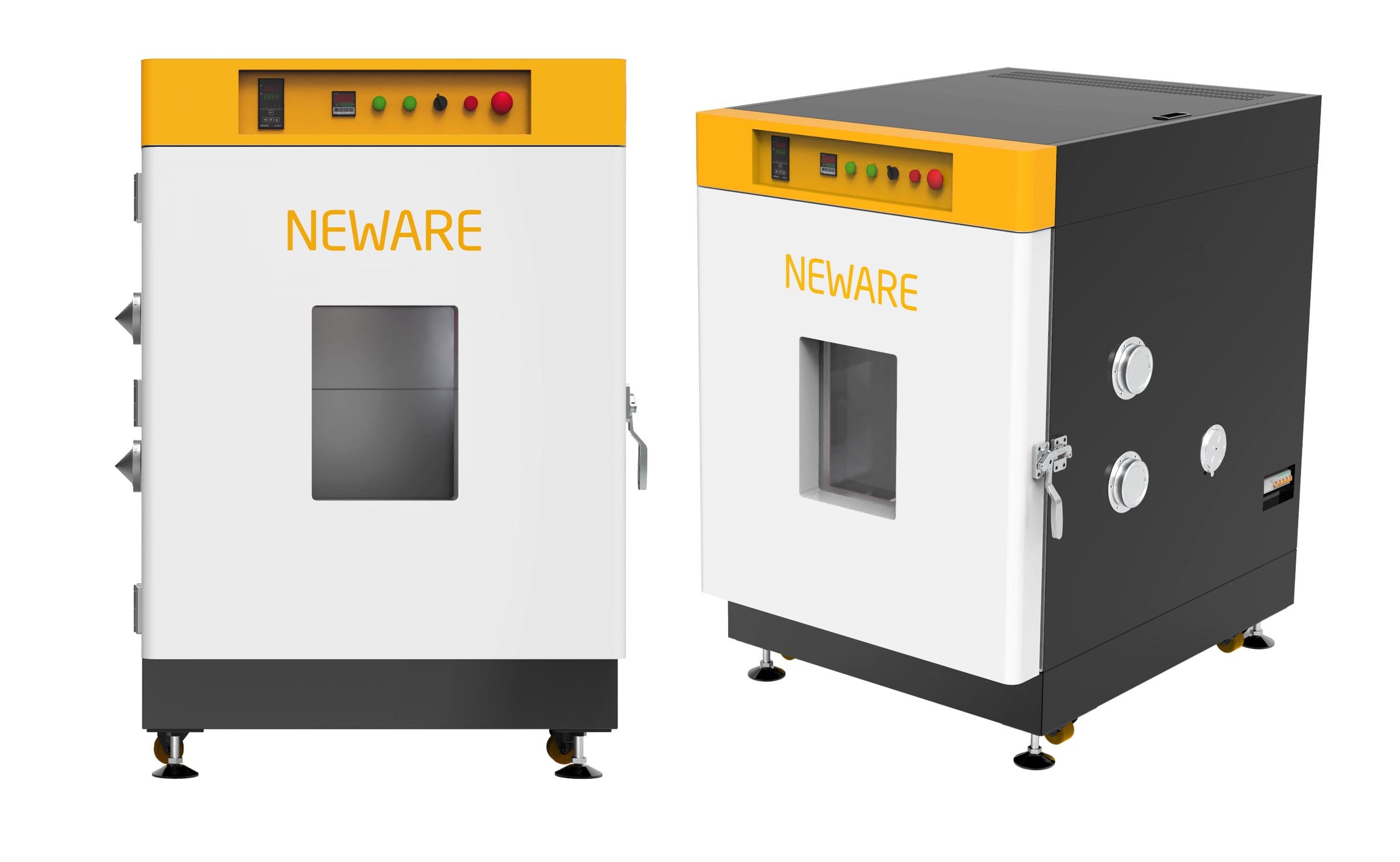

Neware Battery Safety Test Chamber 25L Laboratory Table Type

Neware environmental test chamber - also knows as high and low temperature box , high temperature box , incubator and explosion proof box - is researched and produced by Neware for battery testing in new energy industry , which can provide the required high temperature , low temperature and constant temperature environment for battery charge , discharge and safety performance testing , and it can simulate climate environment for researchers to do tests in lab . Neware environmental test chamber is also a reliable equipment for all companies such as electronics , electricians , instruments , materials and semiconductor , as well as for departments such as schools , medicine , chemical , environmental protection , agriculture , livestock and aquatic products , etc .

Standard configuration of test chamber

Lead hole , can be increased , 4 holes with diameter of 100 mm

With soft rubber plug , 2 on the left and right sides of the box

Casters , 4 with adjusting feet

Observation window: multi layer hollow electric heating film heating anti fog observation window - located on the door

The electric mist eliminator inside the glass can provide the best observation line of sight .

One Lighting lamp
door

Single hinged door - left hinge, right handle , equipped with observation window , lighting lamp

Window frame / door frame anti condensation electric heating device, double silicone rubber sealing strip
control panel Controller display screen , over temperature protection setter , etc
Refrigeration unit room Refrigeration unit , water tray , drain hole and condensing fan
Power distribution control cabinet

One main power leakage circuit breaker, distribution board , exhaust fan and Ethernet physical interface

Temperature and humidity controller , AC contactor , circuit breaker , thermal relay

Temperature limiting protector , solid state relay and transformer , etc
heater Fin heater , heater control mode - contactless equal period pulse width modulation , SSR solid state relay
Power line hole and drain hole Located on the back of the box
Explosion proof pressure relief port , if have It is located at the top of the box and automatically opens when the pressure of the test space exceeds the set pressure

25L Laboratory Test Chamber
