10HZ Capacitor Testing Machine , Neware Battery Charge Discharge Tester

Product Categories
Neware Technology Limited
Contact Now

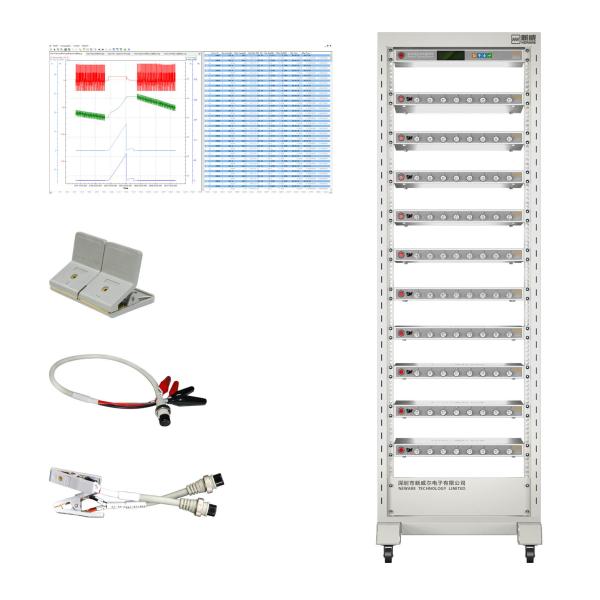

10HZ Capacitor Testing Machine , Neware Battery Charge Discharge Tester

  • 1
  • 2
  • 3

Brand Name : Neware

Model Number : CT-4008T-5V10mA-164

Certification : CE

Place of Origin : China

MOQ : 1 Unit

Price : USD negotiation per Unit

Payment Terms : T/T

Supply Ability : 100 Units Per Month

Delivery Time : 8 working days

Packaging Details : Carton box , 530 - 360 - 130mm

Charge Mode : CCC , CVC , CCCVC , CPC

End Conditon : Voltage , Current , Relative Time , Capacity

Record Frequency : 10HZ

Discharge Mode : CCD , CPD , CRD

End Condition : Voltage , Current , Relative Time , Capacity

Loop Measure Range : 1 - 65535 times

Contact Now

Neware Battery Cell Material Research Cycler Capacitors Test Instrument

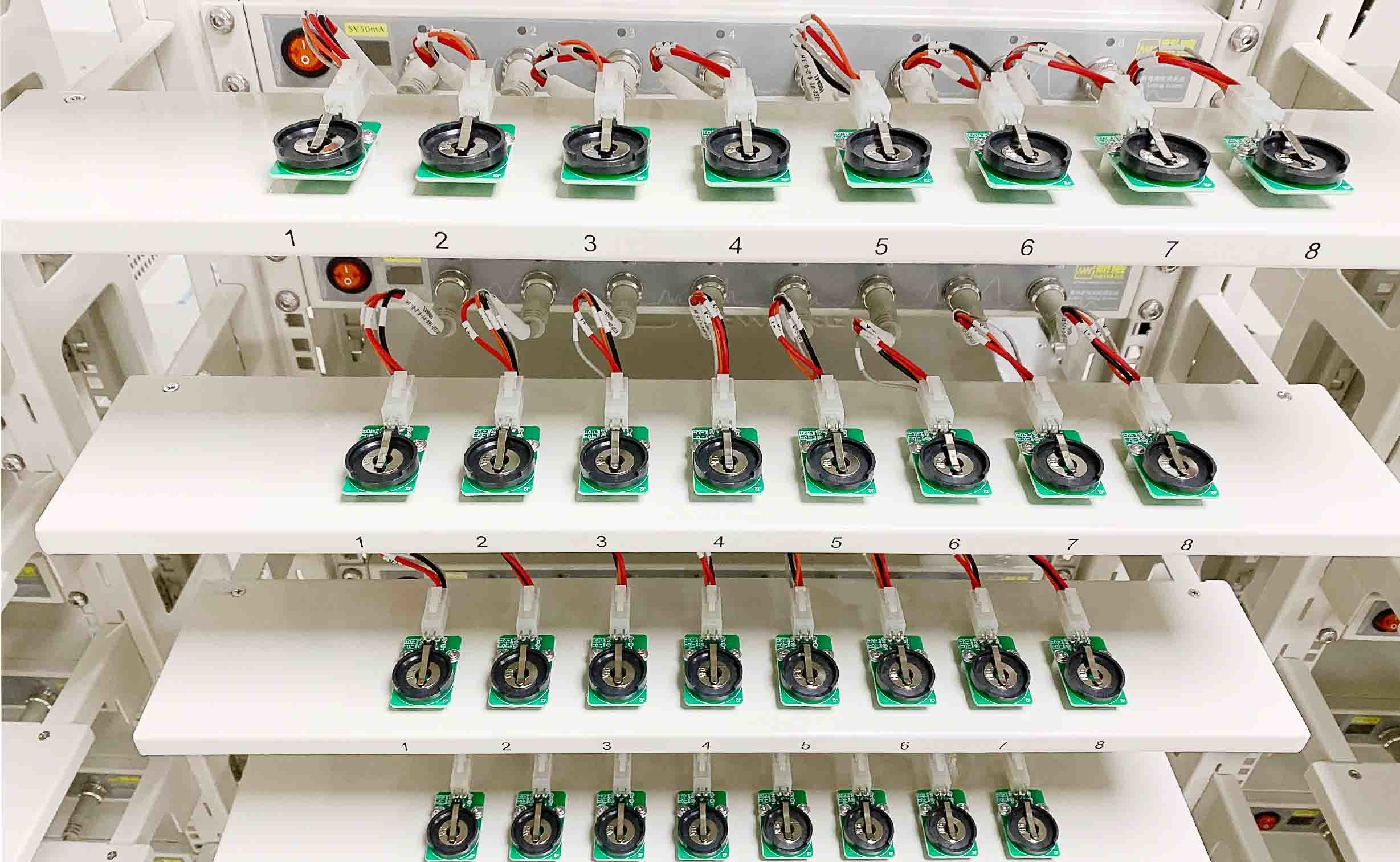

1 . This 8 Channels Coin Cell Analyzer 5V10mA provides most applications in battery testing fields such as electrode materials research, battery performance test , small - scale battery formation , capability grading , battery pack testing and etc .

2 . 20 set of mA Neware battery testers can be put in one rack

3 . The lower range is able to output current low as 5uA , which can tell the subtle difference of various materials such electrodes , electrolyte , separator , etc .

4 . Sensitive galvanometer is used for students to check weak current or tiny voltage in DC circuit in the lab .

5 . Testing with the uA current unit is more accurate and more convenient .

6 . The design of the uA current unit plays a vital role in the field of current accurate measurement , which is more convenient and more accurate .

6 . It is a kind of high sensitive magnetoelectric instrument , which can measure the tiny current .

7 . Generally , magnetoelectric galvanometer can achieve uA level , electromagnetic galvanometer can achieve mA level .

Channel Control ModeIndependent Control
Data RecordingRecord Frequency10Hz
ChargeCharge ModeCCCharge , CVCharge , CCCVCharge , CPCharge
End ConditonVoltage , Current , Relative Time , Capacity , -deltaV
DischargeDischarge ModeCCD , CPD , CRD
End ConditionVoltage , Current , Relative Time , Capacity
PulsechargeCCC , CPC
DischargeCCD , CPD
Min Pulse Width500ms
Automated SwitchAutomated swith from charge to discharge for each pulse
End ConditionVoltage, Test Time
CycleLoop Measure Range65535 times
Max Steps Per Loop254
Nested LoopNested loop Function , Max Support 3 Layers
ProtectionSoftware ProtectionPower - down Data Protection
Off - line Testing Function
Setting Protection Condition,Setting Parameter - Low Voltage limit , Upper Voltage limit , Low Current limit , Upper Current limit , Delay Time
IP protection levelProtection level IP20
A Means of Communication of Upper MachineTCP / IP Protocol
Communication InterfaceEthernet Port
Per Unit Main Channels No.8
Dimensions3U , 480 – 404 - 130mm


10HZ Capacitor Testing Machine , Neware Battery Charge Discharge Tester
